三端稳压管

首页 » 壹芯微产品中心 » 三极管 » 三端稳压管

TYPE	PDF	Vin（V）	Vout（V）	Iout（A）	Package
78L05		30	5	0.1	STO-89
78L05B		30	5	0.1	STO-89
78L06		30	6	0.1	STO-89
78L08		35	8	0.15	STO-89
78L08A		35	8	0.15	STO-89
78L09		30	9	0.1	STO-89
78L10		30	10	0.1	STO-89
78L12		35	12	0.1	STO-89
78L12A		35	12	0.1	STO-89
78L12B		35	12	0.1	STO-89
78L15		35	15	0.1	STO-89
78L24		40	24	0.15	STO-89
78L33A					STO-89
79L05		-40	-5	0.15	STO-89
79L06		-40	-6	0.15	STO-89
79L08		-40	-8	0.15	STO-89
79L09		-40	-9	0.15	STO-89
79L10		-40	-10	0.15	STO-89
79L12		-40	-12	0.15	STO-89
79L15		-40	-15	0.15	STO-89
79L24		-40	-24	0.15	STO-89
78M05		35	5	0.5	TO-252
78M06		35	6	0.5	TO-252
78M08		35	8	0.5	TO-252
78M09		35	9	0.5	TO-252
78M10					TO-252
78M12		35	12	0.5	TO-252
78M15		35	15	0.5	TO-252
79M05		-35	-12	1	TO-252
79M06
79M08
79M09
79M10
79M12		35	12	0.5	TO-252
79M15					SOT-89
HT7033					SOT-89
HT7036					SOT-89
HT7075					SOT-89
HT7130		24	3.0	0.03	SOT-89
HT7133		24	3.3	0.03	SOT-89
HT7136		24	3.6	0.03	SOT-89
HT7150		24	5.0	0.03	SOT-89
HT7333		12	3.3	0.25	SOT-89
HT7530		24	3.3	0.1	SOT-89
HT7530A					SOT-89
HT7533		24	3.3	0.1	SOT-89
HT7536		24	3.6	0.1	SOT-89
HT7550		24	5	0.1	SOT-89
MC78L05		30	10	0.1	SOP8
MC78L09		30	15	0.1	SOP8
MC78L12A		30	19	0.1	SOP8
MC79L05
NCV78L05
UA78L05		20	5	0.1	SOP8
UA79L05
HT7133		24	3.3	0.1	TO-92
HT7136		24	3.6	0.1	TO-92
HT7150		24	5	0.1	TO-92
HT7333		12	3.3	0.25	TO-92
HT7530		24	3	0.1	TO-92
HT7533		24	3.3	0.1	TO-92
HT7536		24	3.6	0.1	TO-92
HT7550		24	5	0.1	TO-92
HT7033A			3.3	0.05	TO-92
HT7050A			5	0.05	TO-92
HT7130A
HT7133A
HT7136A
HT7150A
HT7533A
HT7536A
HT7550A
L7805CV		35	5	1.5	YO-220
L7808CV		35	8	1.5	YO-220
L7809CV		35	9	1.5	YO-220
L7812CV		35	12	1.5	YO-220
L7815CV		35	15	1.5	YO-220
L7818CV		35	18	1.5	YO-220
L7824CV		40	24	1.5	YO-220
L7905CV		-35	-5	1.5	YO-220
L7908CV		-35	-8	1.5	YO-220
L7912CV		-35	-12	1.5	YO-220
L7915CV		-35	-15	1.5	YO-220
L7924CV		-40	-24	1.5	YO-220
78L05		30	5	0.1	TO-92
78L06		30	6	0.1	TO-92
78L08		30	8	0.1	TO-92
78L09		30	9	0.1	TO-92
78L10		30	10	0.1	TO-92
78L12		30	12	0.1	TO-92
78L15		30	15	0.1	TO-92
78L24		40	24	0.1	TO-92
79L05		-20	-5	0.1	TO-92
79L06		-20	-6	0.1	TO-92
79L08		-20	-8	0.1	TO-92
79L09		-30	-9	0.1	TO-92
79L10
79L12		-20	-12	0.1	TO-92
79L15		-35	-15	0.1	TO-92
79L24
BT139-600E					TO-220
BT139-800E					TO-220
BTA06-600CRG					TO-220
BTA08-600BRG					TO-220
BTA08-600CRG					TO-220
BTA12-600BRG					TO-220
BTA12-600CRG					TO-220
BTA16-600BRG					TO-220
BTA16-600CRG					TO-220
BTA16-800BRG					TO-220
BTA26-600BRG					TO-220
BTA40-600BRG					TO-220
BTA40-700BRG					TO-220
BTB08-600CRG					TO-220
LM317T		40	1.2	1.5	TO-220
贴片三端稳压管
KD1084ADT-R		20	1.5	1.5	TO-252
L7805CDT-TR		10	5	0.75	TO-252
L78D09					TO-252
L78M05ABDT-TR		10	2	0.35	TO-252
L78M05CDT-TR		10	2	0.35	TO-252
L78M06CDT-TR		11	2	0.35	TO-252
L78M08CDT-TR		14	2	0.35	TO-252
L78M09CDT-TR		14	2	0.35	TO-252
L78M10CDT		16	2	0.35	TO-252
L78M12CDT-TR		19	2	0.35	TO-252
L78M15ABDT		23	2	0.35	TO-252
L78M15CDT-TR		23	2	0.35	TO-252
L78M24CDT		33	2	0.35	TO-252
L79M05CDT		10	1.4	0.5	TO-252
L79M12CDT		19	1.1	0.5	TO-252
L79M15CDT		23	1.1	0.5	TO-252
LD1086DT15R		4.5	1.5	2	TO-252
LD1086DT18TR		4.8	1.5	2	TO-252
LD1086DT33TR		6.3	1.5	2	TO-252
LD1086DT50		8	1.5	2	TO-252
LD1086DTTR					TO-252
LD1117ADT18TR		3.8	1.8	1	TO-252
LD1117ADT25TR		4.5	2.5	1	TO-252
LD1117CDTTR					TO-252
LD1117DT12TR		3.2	1.2	0.8	TO-252
LD1117DT18CTR		3.8	1.8	0.8	TO-252
LD1117DT18TR		3.8	1.8	0.8	TO-252
LD1117DT25C		4.5	2.5	0.8	TO-252
LD1117DT25TR		4.5	2.5	0.8	TO-252
LD1117DT28TR		4.85	2.85	0.8	TO-252
LD1117DT33CTR		5.3	3.3	0.8	TO-252
LD1117DT33TR		5.3	3.3	0.8	TO-252
LD1117DT50CTR		7	5	0.8	TO-252
LD1117DTC-R		15	5	0.8	TO-252
LD1117DTTR-E					TO-252
LD29080DT50R		7	5	0.4	TO-252
LD29080PT25R		4.5	2.5	0.4	TO-252

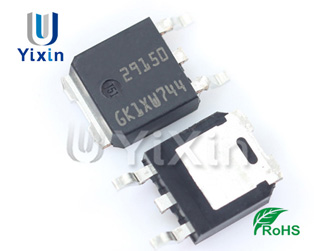

LD29150DT15		3.5	1.5	0.4	TO-252
LD29150DT25R		4.5	2.5	0.4	TO-252
LD29150PT33R		5.3	3.3	0.4	TO-252
LD29150PT50R		7	5	0.4	TO-252
LD29150PTR					TO-252
LD33					TO-252
LD39080PT-R		6.5	5	0.4	TO-252
LD39080PT18-R		6	1.8	0.8	TO-252

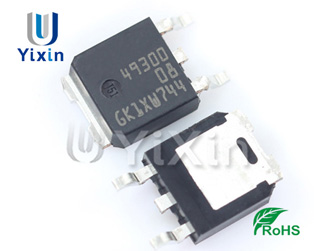

LD49300PT08R		3	0.8	3	TO-252
LD49300PT10R		4.5	1	3	TO-252
LD49300PT12R		6	1.2	3	TO-252
LD50					TO-252
LDFM50DT-TR		16	5	0.5	TO-252
LDR1833		0.3	1.8	1	TO-252
LM217MDT-TR		5	1.3	0.1	TO-252
LM2931ADT50R		14	5	0.1	TO-252
LM317MDT-TR		40	5	0.5	TO-252
FAN1084DX		7	1.5	4.5	TO-252
FAN1086DX		7.5	2	1.5	TO-252
FAN1112DX		18	1.2	1	TO-252
FAN1117AD18X		18	1.8	1	TO-252
FAN1117ADX		18	1.8	1	TO-252
FAN1538DX					TO-252
FAN1581DX		1.2	0.4	5	TO-252
FAN1587AD33X		4.8	3.3	3	TO-252
FAN1587ADX		4.8	3.3	3	TO-252
FAN1616AD25X		18	2.5	0.5	TO-252
FAN1950D25X		15	2.5	1.5	TO-252
KA317MRTM		40	1.2~37	0.5	TO-252
KA7805ERTM		10	5	0.5	TO-252
KA7805R		10	5	0.5	TO-252
KA7806R		11	6	0.5	TO-252
KA7808ER		14	8	0.5	TO-252
KA7809ER		15	9	0.5	TO-252
KA7809R		15	9	0.5	TO-252
KA7812ERTM		19	12	0.5	TO-252
KA7812R		19	12	0.5	TO-252
KA78M05RTM		10	5	0.35	TO-252
KA78M06RTF		11	6	0.35	TO-252
KA78M12RTM		19	12	0.35	TO-252
KA79M12RTM		-1	-12	-0.35	TO-252
LM317MDTX		40	1.2~37	0.5	TO-252
LM7905R					TO-252
MC7805ECDTXM		35	5~12	1	TO-252
MC78M06CDT		35	6	0.5	TO-252
RC1117D25T		7.5	2.5	1	TO-252
RC1587DT					TO-252
RC1616ST					TO-252
FAN1086M25X		7.5	2.5	1.5	TO-263
FAN1086M33C		7.5	3.3	1.5	TO-263
FAN1585AMX		18	1.5~3.3	5	TO-263
FAN1587AM33X		18	3.3	3	TO-263
RC1117M33T		7.5	3.3	1	TO-263
RC1585MT		7	1.5~3.6	5	TO-263
RC1587MC					TO-263
RC1616MT					TO-263
ACS120-7SB		5	1	2	TO-252
LF15ABDT-TR		16	1.5	0.5	TO-252
LF18ABDT-TR		16	1.8	0.5	TO-252
LF18CDT-TR		16	1.8	0.5	TO-252
LF25ABDT-TR		16	2.5	0.5	TO-252
LF25CDT-TR		16	2.5	0.5	TO-252
LF30CPT		16	3	0.5	TO-252
LF33ABPT-TR		16	3.3	0.5	TO-252
LF33BDT		16	3.3	0.5	TO-252
LF33CPT-TR		16	3.3	0.5	TO-252
LF35		16	3.5	0.5	TO-252
LF50ABPT-TR		16	5	0.5	TO-252
LF50CPT-TR		16	5	0.5	TO-252
LF52CPT		16	5.2	0.5	TO-252
LF60A		16	6	0.5	TO-252
LF80ABDT-TR		16	8	0.5	TO-252
LF80CDT		16	8	0.5	TO-252
LF85A		16	8.5	0.5	TO-252
LF85CDT-TR		16	8.5	0.5	TO-252
LF90CDT-TR		16	9	0.5	TO-252
ST1L04PT-R		2.8	0.8	1	TO-252
ST2L01PTR		10	1.25~3.0	1	TO-252
插件三端稳压管
KD1084V18		12	1.8	5	TO-220
KD1084V25		12	2.5	5	TO-220
KD1084V33		12	3.3	5	TO-220
KD1084V50		12	5	5	TO-220
L4812CV		35	12	0.4	TO-220
L4931A50		20	5	0.25	TO-220
L4931C12		20	1.2	0.25	TO-220
L4931C33		20	3.3	0.25	TO-220
L4931CV120		20	12	0.25	TO-220
L4940V10		30	10	1.5	TO-220
L4940V85		30	8.5	1.5	TO-220
L4941BV		30	5	1	TO-220
L4957AV2		16	2.5	5	TO-220
L7805ACV		35	5	1	TO-220
L7806ACV		35	6	1	TO-220
L7808ABV		35	8	1	TO-220
L7808ACV		35	8	1	TO-220
L7808CV-DG		35	8	1	TO-220
L7809ABV		35	9	1	TO-220
L7810CV		35	10	1	TO-220
L7812ABV		35	12	1	TO-220
L7812ACV		35	12	1	TO-220
L7815ACV		35	15	1	TO-220
L7820CV		35	20	1	TO-220
L7885CV		35	8.5	1	TO-220
L78M05ABV		35	5	0.5	TO-220
L78M05CV		35	5	0.5	TO-220
L78M06CV		35	6	0.5	TO-220
L78M08ABV		35	8	0.5	TO-220
L78M09CV		35	9	0.5	TO-220
L78M15ABV		35	15	0.5	TO-220
L78M15CV		35	15	0.5	TO-220
L78S05CV		35	5	2	TO-220
L78S09CV		35	9	2	TO-220
L78S10CV		35	10	2	TO-220
L78S12CV		35	12	2	TO-220
L7900CV		-35	-5~--24	1.5	TO-220
L7905ACV		-35	-5	-1.5	TO-220
L7909CV		-35	-9	-1.5	TO-220
L7910CV		-35	-10	-1.5	TO-220
L7912ACV		-35	-12	-1.5	TO-220
L7924ACV		-35	-24	-1.5	TO-220
LD1084V		12	2.5~12	5	TO-220
LD1084V33		12	3.3	5	TO-220
LD1084V50		12	5	5	TO-220
LD1084V90		12	9	5	TO-220
LD1085V33		30	3.3	3	TO-220
LD1085V50		30	5	3	TO-220
LD1086V33		30	3.3	1.5	TO-220
LD1086V50		30	5	1.5	TO-220
LD1086V90		30	9	1.5	TO-220
LD1117AV		15	1.2~5	1	TO-220
LD1117AV18		15	1.8	1	TO-220
LD1117AV33		15	3.3	1	TO-220
LD1117AV50		15	5	1	TO-220
LD1117V25		15	2.5	1	TO-220
LD1117V50-DG		15	5	1	TO-220
LD29300V50		30	5	3	TO-220
LF50CV		40	5	0.5	TO-220
LF60ABV		40	6	0.5	TO-220
LF60CV		40	6	0.5	TO-220
LM217T-DG		40	1.25	1.2	TO-220
LM317T-DG		40	1.3	1.2	TO-220
LM323T		20	5	3	TO-220
LM337SP		40	1.25	1.5	TO-220
LM7805CV		35	5	1	TO-220
CTA06-600CW		600	1.3	6	TO-220
L7805CP		35	5	1.5	TO-220F
L7808CP		35	8	1.5	TO-220F
L7809CP		35	9	1.5	TO-220F
L7812CP		35	12	1.5	TO-220F
L7815CP		35	15	1.5	TO-220F
L7824CP		35	24	1.5	TO-220F
L78M05CP		35	5	0.5	TO-220F
L78M09CP		35	9	0.5	TO-220F
L7905CP		-35	-5	-1.5	TO-220F
L7912CP		-35	-12	-1.5	TO-220F
L7915CP		-35	-15	-1.5	TO-220F
LM317P		40	1.3	1.5	TO-220F
TA4805AS					TO-220F
TA4805S		16	5	1	TO-220F
TA58L05S		29	5	0.25	TO-220F
TA58L06S		29	6	0.25	TO-220F
TA58L10S		29	10	0.25	TO-220F
TA58L15S		29	15	0.25	TO-220F
TA58M05S		35	5	0.5	TO-220F
TA78057S		35	5.7	1	TO-220F
TA7805LS		35	5	1	TO-220F
TA7805S		35	5	1	TO-220F
TA7806SB		35	6	1	TO-220F
TA7810SB		35	10	1	TO-220F
TA7812S		35	12	1	TO-220F
TA7815S		35	15	1	TO-220F
TA7818S		35	18	1	TO-220F
TA78DL05AS		29	5	0.2	TO-220F
TA78M08S		35	8	0.5	TO-220F
TA78M10S		35	10	0.5	TO-220F
TA78M12S		35	12	0.5	TO-220F
TA78M15S		35	15	0.5	TO-220F
TA79005S		-35	-5	-1	TO-220F
TA79007CB		-35	-7	-1	TO-220F
TA79007S		-35	-7	-1	TO-220F
TA79009S		-35	-9	-1	TO-220F
TA79012S		-35	-12	-1	TO-220F
78RM33					TO-220
K79M24					TO-220
KA317		40	1.2~37	1.5	TO-220
KA7805E		35	5	1	TO-220
KA7805		35	5	1	TO-220
KA7806E		35	6	1	TO-220
KA7806		35	6	1	TO-220
KA7808E		35	8	1	TO-220
KA7808TSTU		35	8	1	TO-220
KA7808TU		35	8	1	TO-220
KA7809		35	9	1	TO-220
KA7809TU		35	9	1	TO-220
KA7810		35	10	1	TO-220
KA7810ETU		35	10	1	TO-220
KA7812AETU		35	12	1	TO-220
KA7812ETU		35	12	1	TO-220
KA7812TSTU		35	12	1	TO-220
KA7815ETU		35	15	1	TO-220
KA7815TU		35	15	1	TO-220
KA7818ETU		35	18	1	TO-220
KA7818TU		35	18	1	TO-220
KA7824		40	24	1	TO-220
KA78M05		35	5	0.5	TO-220
KA78M06		35	6	0.5	TO-220
KA78M12		35	12	0.5	TO-220
KA78M15		35	15	0.5	TO-220
KA78M18		35	18	0.5	TO-220
KA78R33TSTU					TO-220
KA78S05					TO-220
KA78T05		35	5	3	TO-220
KA78T06		35	6	3	TO-220
KA78T12		35	12	3	TO-220
KA78T15		40	15	3	TO-220
KA7905		-35	-5	-1	TO-220
KA7906		-35	-6	-1	TO-220
KA7910		-35	-10	-1	TO-220
KA7912A		-35	-12	-1	TO-220
KA7912		-35	-12	-1	TO-220
KA7915		-35	-15	-1	TO-220
KA7918		-35	-18	-1	TO-220
KA7924		-40	-24	-1	TO-220
KA79M05		-35	-5	-0.5	TO-220
KA79M12		-35	-12	-0.5	TO-220
KA79M24		-40	-24	-0.5	TO-220
LM317		40	1.2~3.7	1.5	TO-220
LM337		40	1.2~3.7	1.5	TO-220
LM350K		35	1.2~33	3	TO-220
LM7808		35	8	1	TO-220
LM7809		35	9	1	TO-220
LM7815		35	15	1	TO-220
LM7912		35	12	1	TO-220
LM79M05		-35	-5	-0.5	TO-220
MC7812A		35	12	1	TO-220
MC7812AE		35	12	1	TO-220
MC78M12		35	12	0.5	TO-220
MC78M18		35	18	0.5	TO-220
MC7908		14	8.3	0.5	TO-220
